PGL-VI-561 561 nm Green Laser Module
$1,000,000.00
Description: PGL-VI green laser module at 561nm is made features of small size, high output power, long lifetime.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: PGL-VI-561
| Model | PGL-VI-561 |
| Wavelength (nm) | 561±5 |
| Operating Mode | CW |
| Output Power (mW) | 1-5 |
| Transverse Mode | TEM00 |
| Beam Diameter at the Aperture (1/e², mm) | ~1.5 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
| Operating Voltage (Internal PCB) | 3VDC |
| Operating Voltage (External PCB) | 3VDC |
| Connection | Cable with flying leads |
| Operating Temperature (℃) | 10-35 |
| Storage Temperature (℃) | -20 to 80 |
| Humidity | <90%, non-condensing |
| Dissipated Heat | <6W |

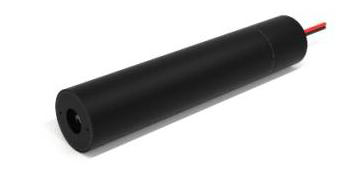

| Dimensions (PGL-VI-561) | Φ20×100 mm |
| Dimensions (PGL-VI-1-561) | Φ15×65 mm |
| Material | Aluminum/Copper |
| Shell Polarity | The housing has a positive electrode |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-VI-561
Please request a quotation for a real price and lead time.
