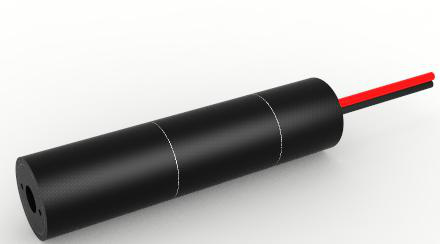

PGL-VI-637 637 nm High Power Red Laser Module
$1,000,000.00
Description: Diode red laser 637nm is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in measurement, spectrum analysis, laser lighting show, etc.
Applications: measurement, spectrum analysis, laser lighting show
Model #: PGL-VI-637
| Wavelength (nm) | 637±5 |
| Operating Mode | CW |
| Output Power (mW) | >1, 5, 10, … , 100 |
| Transverse Mode | Near TEM00 |
| Beam Diameter at Aperture (1/e², mm) | ~3.5 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Operating Temperature (℃) | 15~30 |
| Power Supply | DC 3V PCB |
| Expected Lifetime (hours) | 10000 |
| Warranty | 6 months |
| Remark | Optional focus adjustable is available. Note: The shell has non-polarity. |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-VI-637
Please request a quotation for a real price and lead time.
