PGL-VI-810 810 nm Infrared Laser Module
$1,000,000.00
Description: Diode infrared laser module at 810nm is made features of ultra compact, long lifetime, low cost and easy operating, which made it be used widely in measurement, spectrum analysis and laser show, etc.
Applications: measurement, spectrum analysis, laser show
Model #: PGL-VI-810
| Model | PGL-VI-810 |
| Wavelength (nm) | 810 |
| Wavelength Tolerance (nm) | ±10 |
| Output Power (mW) | 1-100 |
| Operating Mode | CW |
| Transverse Mode | Near TEM00 |
| Beam Diameter at the Aperture (1/e², mm) | ~4.5 |
| Beam Divergence, Full Angle (mrad) | <1 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
| Operating Voltage (Internal PCB) | 3VDC |
| Operating Voltage (Internal PCB1) | 5VDC (TTL 30kHz and Analog 0-3V, 0-5V, optional) |
| Operating Voltage (External PCB2) | 5-12VDC (TTL 30kHz and Analog 0-3V, 0-5V, optional) |
| Connection | Cable with flying leads |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -20 to 80 |
| Humidity | <90%, non-condensing |
| Dissipated Heat | <1W |

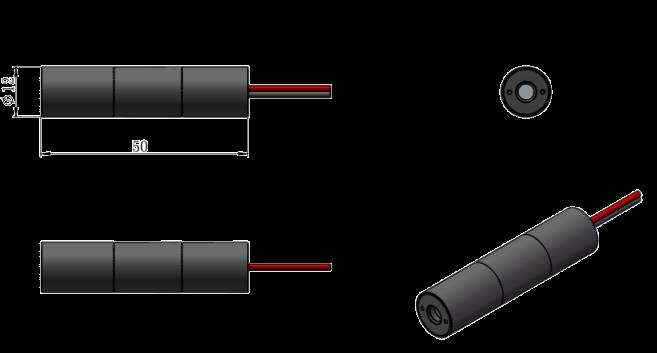

| Dimensions of Internal PCB (mm²) | Φ12×50 |

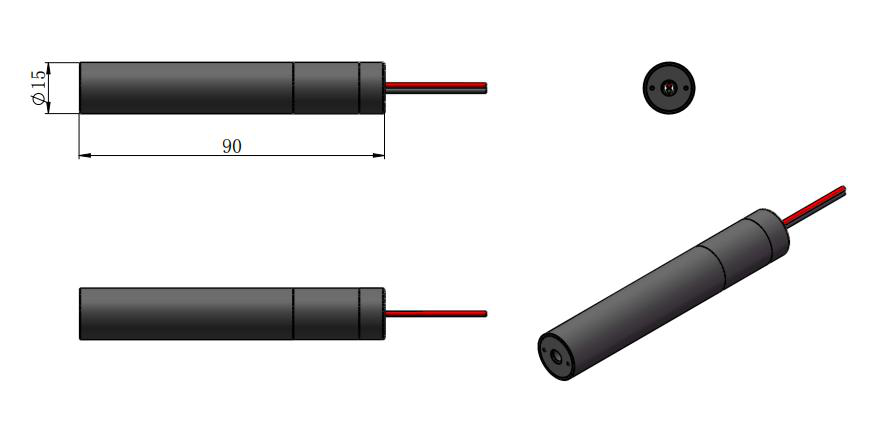

| Dimensions of Internal PCB1 (mm²) | Φ15×90 |
| Material | Aluminum |
| Shell Polarity | The housing is isolated. |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-VI-810
Please request a quotation for a real price and lead time.
