PMCPS Polarization Maintaining Cladding Power Stripper (800 – 2000 nm)
PMCPS Polarization Maintaining Cladding Power Stripper (800 – 2000 nm)

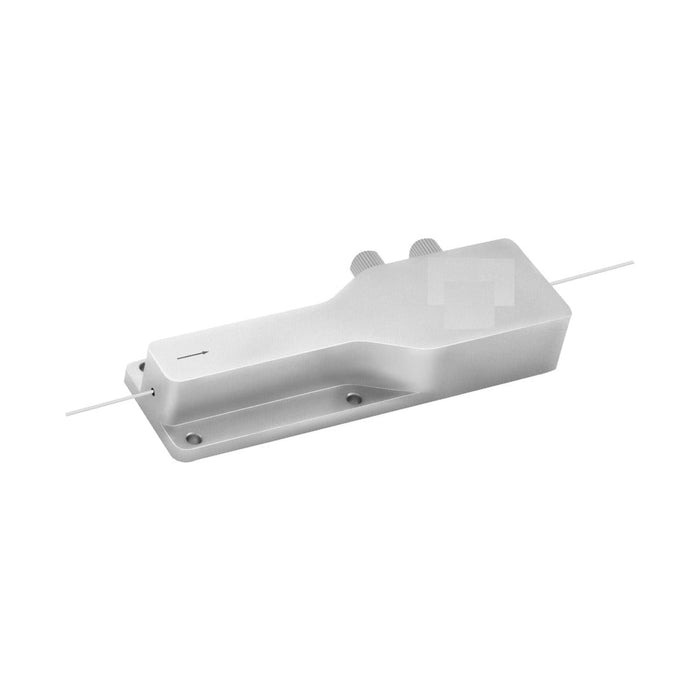

The PM Cladding Power Stripper (PMCPS) is designed for efficiently stripping off residual cladding power, ASE and escaped core modes of double cladding fiber while preserving minimal degradation to signal power and beam quality. It covers the 800 – 2000 nm operating range with a minimum stripping efficiency of 98 %, and handles up to 800 W in the P8 water-cooled package.
Key Features:
- High power handling
- Low insertion loss
Application: Fiber laser
Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Operating Wavelength Range | nm | 800 – 2000 |
| Min. Stripping Efficiency | % | 98 |
| Max. Signal Insertion Loss | dB | 0.3 |
| Fiber Type for Input and Output | – | PM10/125 DCF or PM20/130 DCF or PM30/250 DCF |
| Max. Stripped Power | W | 0 – 20 (P2) / 21 – 50 (P5) / 51 – 200 (P9) / 201 – 800 (P8) |
| Package Type | – | P2 / P5 / P9 / P8 |
| Min. Extinction Ratio | dB | 17 |
| Operating Temperature | °C | -5 to +60 |
| Storage Temperature | °C | -40 to +85 |
Notes:
- Represents the wavelength of the main light in the cladding which is requested to be stripped by the device.
- Fully filled condition.
Ordering Information: PMCPS-AAA-BB-CC-DDD-E-F
AAA: Operating Wavelength
915 – 915 nm / 975 – 975 nm / SSS – Specify
BB: Signal Wavelength
06 – 1064 nm / 55 – 1550 nm / SS – Specify
CC: Fiber Type
10 – Nufern PLMA-GDF-10/125-M / 20 – Nufern PLMA-GDF-20/130 / 30 – Nufern PLMA-GDF-30/250 / SS – Specify
DDD: Stripped Power
020 – 20 W / 050 – 50 W / 200 – 200 W / 800 – 800 W
E: Package Type

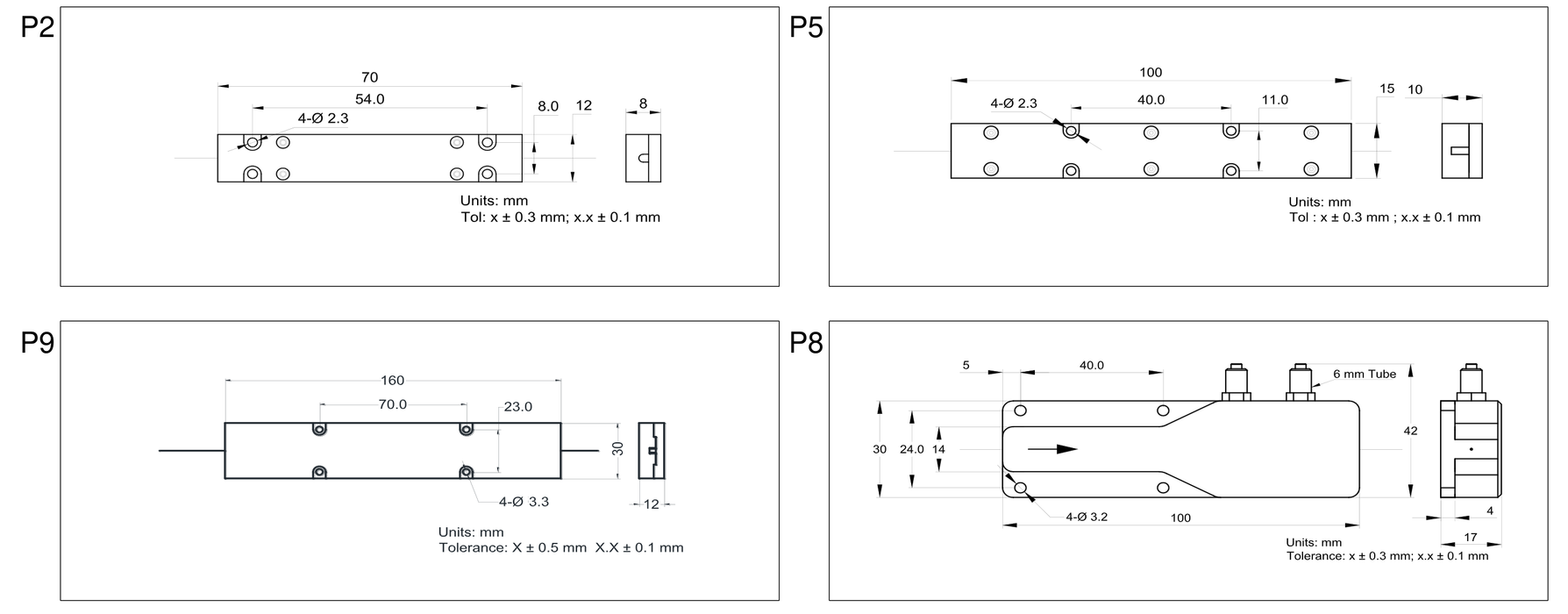

2 – P2: 70 (L) × 12 (W) × 8 (H) / 5 – P5: 100 (L) × 15 (W) × 10 (H) / 9 – P9: 160 (L) × 30 (W) × 12 (H) / 8 – P8: 100 (L) × 30 (W) × 17 (H) (Water Cooling)
F: Fiber Length
Q – 0.75 m / S – Specify
Data Sheet: PMCPS (PDF)
Cladding power stripper for 800 – 2000 nm, PM10/125, PM20/130 and PM30/250 double-cladding fiber, up to 800 W in the P8 water-cooled package. Tell us your power level and fiber type and we will quote the right configuration.
