266 nm LD Pumped All-Solid-Sate Picosecond Pulsed Laser PS-D-266
$1,000,000.00
Description: Picosecond pulsed laser is characterized by short pulse duration and good beam quality.
Applications: glass marking, sapphire marking, ceramic cutting, semiconductor cutting, solar panel coating, film scribing
Model #: PS-D-266
| Wavelength | 266±1 |
| Average Power | 1-5000 @1MHz / 1000-4000 @80MHz / 500-3000 @120MHz |
| Repetition Rate | 400kHz-1MHz / 80MHz±1 / 120MHz±1 |
| Pulse Width | ~10 |
| Power Stability | <3%, <2%, <1% |
| Transverse Mode | TEM00 |
| Beam Circularity | >90 / >90 / >85 |
| Beam Divergence, Full Angle | <2 |
| Beam Diameter at the Aperture (1/e, mm) | ~3 / ~2 |
| M2 | <1.2 / <1.3 |
| Polarization Ratio | >100:1 Horizontal (Vertical optional) |

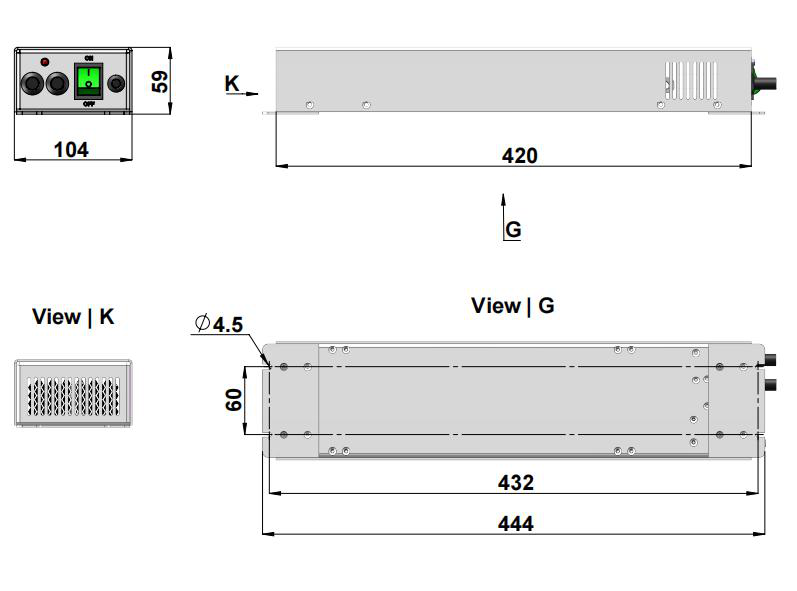

| Beam Height from Base Plate | 106.5 (PS-D-266-I) / 106 (PS-D-266-II) |
| Warm-Up Time | ≥30 |
| Cooling Method | Water cooled |
| Operating Temperature | 20-30 |
| Operating Voltage | 36V/40A |
| Expected Lifetime | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PS-D-266
Please request a quotation for a real price and lead time.
