PS-HG-1030B 1030 nm Picosecond Pulsed Laser
$1,000,000.00
Description: Picosecond pulsed laser at 1030nm is made features of short pulse duration, high repetition rate, high stability and good beam quality, which is used in sapphire marking, ceramic cutting, OLED cutting, glass cutting, etc.
Applications: sapphire marking, ceramic cutting, OLED cutting, glass cutting
Model #: PS-HG-1030B
| Model | PS-HG-1030B |
| Wavelength (nm) | 1030±1 |
| Average Power (W)¹ | 5-50 |
| Single Pulse Energy | 1-2.5 µJ |
| Repetition Rate² | 20-120 MHz |
| Pulse Duration (ps)³ | 10±1 |
| Peak Power | 1-250 kW |
| Average Power Stability (rms, 4 hours ±3℃) | <5%, <3% |
| Warm-Up Time (minutes) | <10 |
| Transverse Mode | TEM00 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Beam Diameter at the Aperture (1/e², mm) | <3 |
| M² | <1.3 |
| Polarization Ratio | >100:1 Vertical |
| Beam Height from Base Plate (mm) | 122 |
| Cooled Method | Water cooled |
| Operating Temperature (℃) | 10-35 |

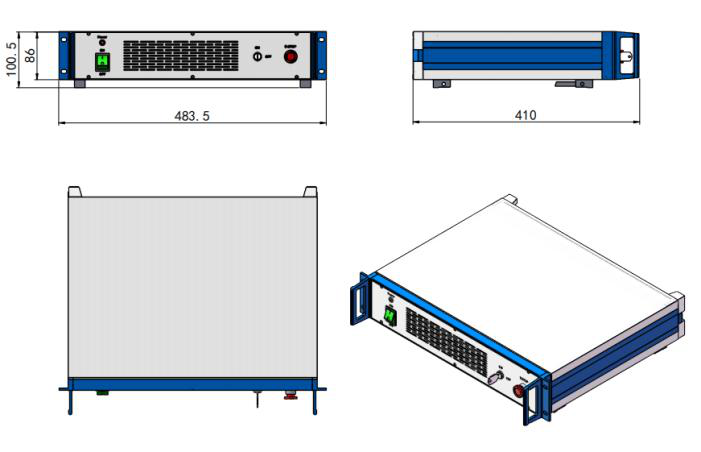

| Power Supply (100-240VAC) | RAD1PS |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PS-HG-1030B
Please request a quotation for a real price and lead time.
