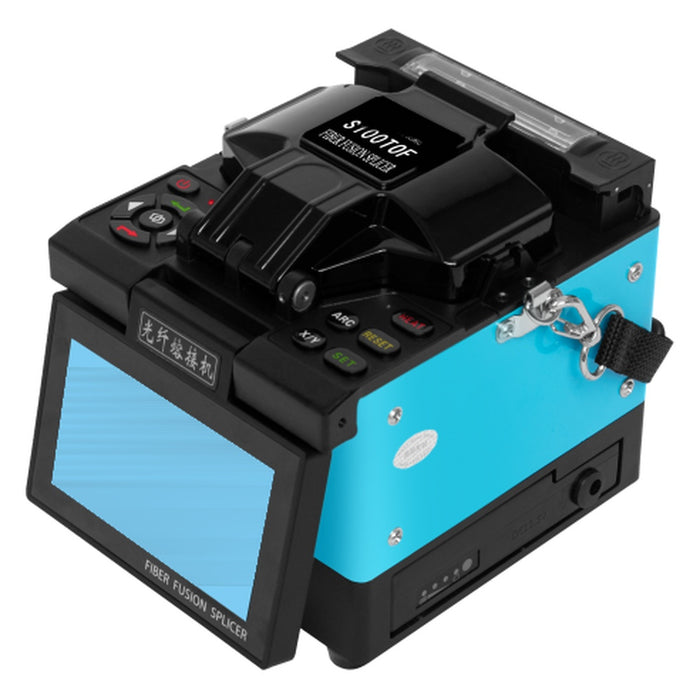

S100TOF Small Diameter Fiber Fusion Splicer

The S100TOF is a small-diameter fiber fusion splicer using clad-to-clad alignment for 50 µm / 60 µm / 80 µm cladding (customizable). It offers three operation modes - manual, semi-automatic, and automatic - with a 4.3-inch touch screen and dual high-sensitivity cameras for X/Y viewing.

Key Features

  • Manual correction and real-time automatic ARC correction are optional.
  • High-power dual LED light design for enhanced visibility during nighttime operations.
  • The discharge arc is compensated in real time based on air pressure, environmental, and temperature parameters.
  • Two cameras can simultaneously observe the X-axis and Y-axis directions to achieve fiber alignment.
  • High-resolution 4.3-inch color LED touch screen; supports multiple languages.
  • Equipped with two USB ports, one for data transfer and one for external construction lighting.
  • Two 12 V power ports; you can power the unit directly from either the internal battery or the external power supply.

Data Sheet: S100TOF Small Diameter Fiber Fusion Splicer (PDF)

Mismatched fiber splicing: Please review the video to splice a 50 µm cladding-diameter fiber to a 125 µm cladding-diameter fiber.
