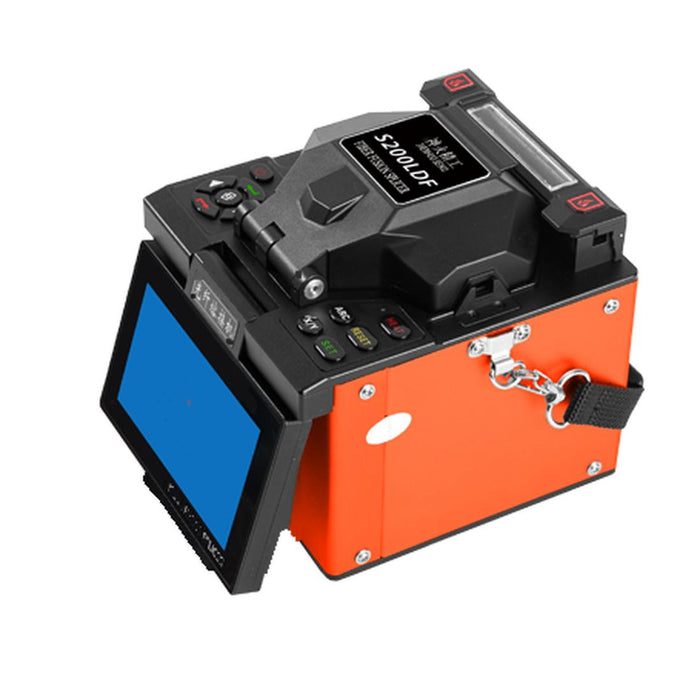

S200LDF Large Diameter Fiber Fusion Splicer
S200LDF Large Diameter Fiber Fusion Splicer
High-speed splicing and heating, touch-screen and keypad control, applicable to cladding diameter 200–250 µm fiber.
The S200LDF specialty fusion splicer is a new model with innovative technologies for the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice large-diameter fibers (200–250 µm) with this specialty fiber fusion splicer.
Key Features
- Applicable to cladding diameter 200 – 250 µm fiber.
- Real-time ARC calibration based on environment.
- High-resolution 4.3-inch touch screen.
- PAS accurate alignment, world-standard fusion loss.
- Applicable to different types of fibers (SM / MM / DS / NZDS).
- Supports 10,000 fusion records and 200 fusion images.
- 5,200 mAh pluggable Li-battery, supports separate charging.
- 2 USB ports: software upgrading, record exporting / power supply for LED light.
Specifications
| Parameter | Specifications |
|---|---|
| Alignment Method | Clad to clad |
| Applicable Fiber | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655) |
| Cladding Diameter | 200 – 250 µm |
| Cutting Length | 8 – 16 mm (fiber diameter < 250 µm); 16 mm (fiber diameter 250 – 1000 µm) |
| Typical Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB |
| Return Loss | > 60 dB |
| Operation Mode | Manual / Semi-automatic / Automatic |
| Typical Splice Time | ≤ 9 s |
| Typical Heating Time | ≤ 30 s (60 mm heating tube) |
| Tension Test | Typical 2 N |
| Fiber Magnification | 220X (X or Y single image), 110X (X and Y double image) |
| Viewing Display | Dual high-sensitivity cameras, 4.3-inch touch screen |
| Data Storage | 10,000 data records and 200 images |
| Battery Capacity | 5,200 mAh Li-battery, 200 cycles of splicing and heating |
| Power Supply | AC adaptor, input: AC 100 – 240 V (50/60 Hz), output: DC 13.5 V / 4.5 A |
| Electrode Life | > 3,000 discharges |
| Terminals | 2 USB ports: software upgrading, record exporting / power supply for LED light |
| Operating Condition | Altitude: 0 – 5,000 m; humidity: 0 – 95 %; temperature: −10 – +50 °C; wind: max. 15 m/s |
| Dimension / Weight | 130 mm (L) × 154 mm (W) × 132 mm (H) / 2.0 kg (including battery) |
Accessories
| Parameter | Specifications |
|---|---|
| Standard Accessories | Splicer S200LDF (1); fiber stripper SH-06 (1); belt SH-04 (1); charger SH-01 (1); spare electrodes SH-02 (1); cooling tray SH-03 (1); carrying case SH-05 (1); specification (1) |
| Optional Accessories | Mobile power supply SH-S80; large diameter fiber cleaver SH-D106; GPS function; LED light |
Data Sheet: S200LDF Large Diameter Fiber Fusion Splicer (PDF)
