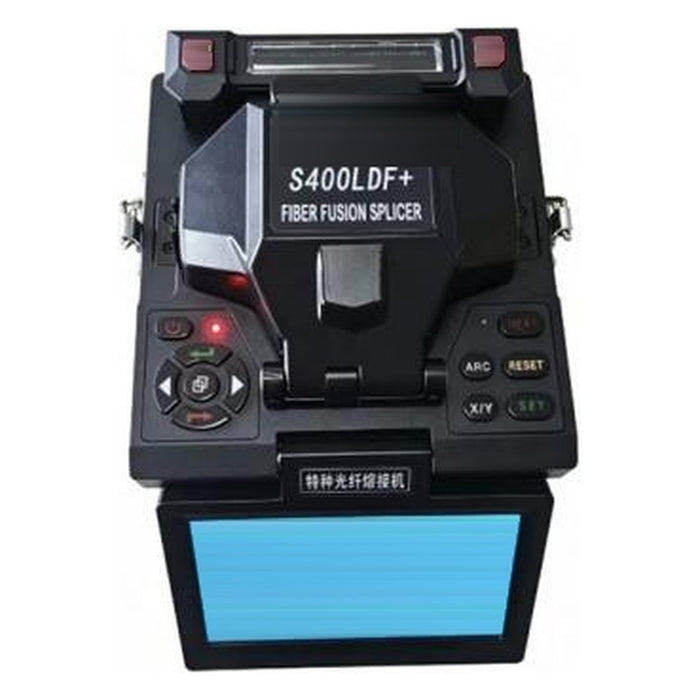

S400LDF+ Large Diameter Fiber Fusion Splicer

The S400LDF+ is a large-diameter fiber fusion splicer for cladding diameters of 125 – 500 µm. It uses fiber-core alignment with two cameras viewing the X and Y axes at the same time, and is controlled from a 5-inch high-resolution color touch screen with customizable multi-language menus.

Key Features

• Artificial calibration and real-time ARC automatic calibration are optional.
• High-power dual LED light design for enhanced visibility during nighttime operations.
• Electrical discharge ARC makes real-time compensation according to the pressure, environment and temperature parameters.
• Two cameras can observe X axes and Y axes at the same time.
• High resolution 5-inch color LED touch screen; multi languages are customizable.
• 2 USB ports: one for data transmission, one for power supply of the LED light.
• Two 12 V power ports; battery or external power supply directly.

Data Sheet: S400LDF+ Large Diameter Fiber Fusion Splicer (PDF)
