S5 Fiber Fusion Splicer

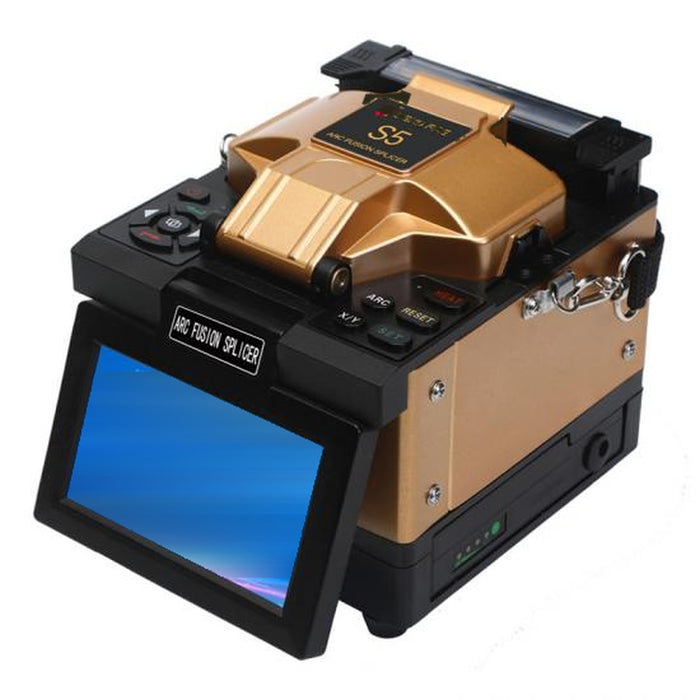

S5 Handheld FTTH Fiber Fusion Splicer
Classic handheld fiber splicing machine: 4.3-inch touch screen, small size and easy to carry, with dust-resistant, water-resistant and shock-resistant construction for greater environment adaptability.
S5 is a stable-performance optical fiber fusion splicer with 4 motors, mainly used for the fusion and protection of common communications fibers. Its large-capacity battery ensures long-time field operations.
Key Features
- Core-to-core digital alignment.
- 8 s for splicing, 18 s for tube heating.
- 4.3-inch touch screen — small size, easy to carry.
- Three-in-one fiber fixture, suitable for all types of optic fibers.
- High-power dual-LED light, convenient for night construction.
- 5,200 mAh removable lithium battery — 280 cycles of splicing and heating.
- ARC calibrated by temperature and air pressure automatically.
- No mirror design, reducing maintenance workload.
- Applies to high and low temperature, high altitude and harsh environments.
Specifications
| Parameter | Specifications |
|---|---|
| Fiber Count | Single |
| Applicable Fiber | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), others (such as G.657) |
| Splicing Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Return Loss | > 60 dB |
| Operate Mode | Manual, Auto |
| Fiber Alignment | Core to core alignment |
| Splicing Time | Typical 8 s |
| Heating Time | Typical 18 s |
| Heat Shrinkable Tube | 60 mm, 40 mm |
| Fiber Cleaved Length | 8 – 16 mm |
| Fiber View Magnification | 350X (X or Y view), 150X (X and Y view) |
| Display | 4.3-inch touch-screen LCD |
| Tension Test | 2 N |
| Battery Capacity | 5,200 mAh removable inner Li-battery; 280 cycles of splicing and heating after one full charge |
| Electrode Life | Around 5000 ARC discharges |
| Interface | USB for data download and software update |
| Night Construction | Built-in high-power dual-LED lights |
| Power Supply | Adaptor, input: AC 100 – 240 V, output: DC 13.5 V / 4.8 A |
| Operation Condition | Temperature: −15 – +50 °C, humidity: < 95 % RH (no condensation); working altitude: 0 – 5000 m; resist max. wind speed: ≤ 15 m/s |
| Weight | 1.95 kg (including battery) |
| Dimension | 130 mm (L) × 154 mm (W) × 132 mm (H) |
Standard Package
- Fusion splicer × 1
- Fiber cleaver × 1
- Fiber stripper × 1
- Drop cable stripper × 1
- AC adaptor × 1
- P.S cord × 1
- Spare electrodes (1 pair) × 1
- Cooling tray × 1
- Manual (CD) × 1
- Carrying case × 1
- Calibration certificate × 1
Data Sheet: S5 Fiber Fusion Splicer (PDF)
