S500M Large Diameter Fiber Fusion Splicer
S500M Large Diameter Fiber Fusion Splicer

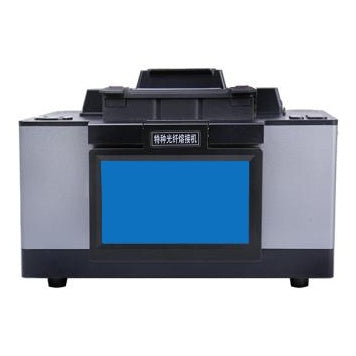

The S500M is a large-diameter fiber fusion splicer for specialty optical fibers. Six motors drive core-to-core adjustment and center alignment, and the electrical discharge arc is compensated in real time according to the pressure, environment and temperature. Two cameras observe the X and Y axes at the same time, and the 5-inch colour LED touch screen supports customizable languages. It is intended for factory, manufacturing, laboratory and R&D splicing of large-diameter specialty fibers.
Key Features:
- Six motor core-to-core adjustment with center alignment.
- Artificial calibration and real-time ARC automatic calibration are optional.
- The same optical fiber and different optical fibers are connected in the center.
- Electrical discharge ARC makes real-time compensation according to the pressure, environment and temperature parameters.
- Two cameras can observe the X and Y axes at the same time.
- High-resolution 5-inch colour LED touch screen; multiple languages customizable.
- Two USB ports: one for data transmission, one for powering the LED light.
Specifications:
| Parameter | Specifications |
|---|---|
| Model | S500M |
| Applicable Fiber | SM; MM; DS; NDZS |
| Fiber Diameter | Cladding diameter 125 – 500 µm |
| Weight | 0.312 kg (including battery) |
| Dimensions | 242 mm (W) × 176 mm (D) × 160 mm (H) |
| Return Loss | > 60 dB |
| Electrode Life | Typical 3,000 discharges |
| Heat-Shrink Tube | 60/40 mm and other miniature tube |
| Data Storage | 10,000 groups of data records and 200 group images |
| Typical Heat Time | ≤ 30 s (60 mm) |
| Tension Test | Typical 2 N |
| Typical Splice Time | ≤ 9 s |
| Typical Splice Loss | 0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS) |
| Cutting Length | 8 – 16 mm (coating diameter ≤ 250 µm); 16 mm (coating diameter 250 – 1000 µm) |
| Fiber Magnification | X or Y single fiber image 300X; X and Y double image 150X |
| Operating Condition | Temperature −10 to +50 °C; humidity < 95 %; altitude 0 – 5000 m; wind max. 15 m/s |
| Power Supply | AC adapter, input AC 100 – 240 V (50/60 Hz), output DC 13.5 V/4.5 A; 5200 mAh Li-battery, 11.1 V |
| Standard Accessories | Machine S500M; cooling tray SH-03; carrying box SH-05; charger SH-01 (with AC); strippers SH-06; instruction book |
| Optional Configuration | Mobile battery (SH-S80); GPS function module / IoT module; large diameter cutter (SH-D106) |
Data Sheet: S500M Large Diameter Fiber Fusion Splicer (PDF)
