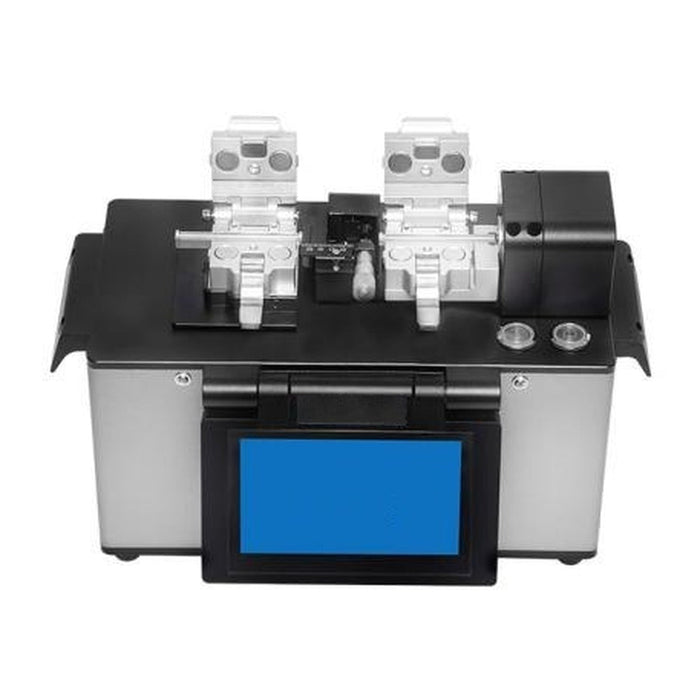

SH-D104B 8-Degree Angled Fiber Cleaver

The SH-D104B 8-degree angled fiber cleaver is primarily designed for cutting large-core-diameter optical fibers and fiber combiners. Users can configure the fiber pull with simple settings; with the cutting force, the cutting tool head can effortlessly slice through various fiber types and collimators. The machine not only possesses the cutting stability required for production, but also the grinding capability. It is flexible and adjustable.

Key Features

• High precision, high speed, high stability, and high quality
• 4.3-inch touch screen with LED color display, multiple language modes
• Cutting range: fiber cladding diameter 80 – 1500 µm (parameters customizable)
• Advanced parameter adjustment for multi-faceted optimization, adjustable cutting modes
• Cuts photonic crystal fiber, doped fiber, glass tube, capillary tube and other specialty fibers, and can cut at an angle

Please refer to Data Sheet for detailed specifications.
