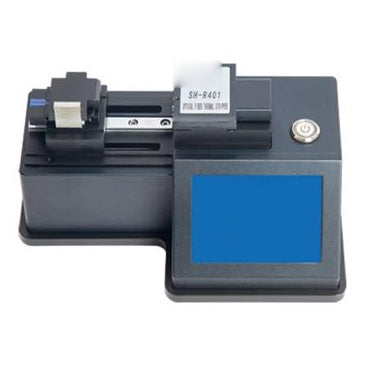

SH-R401 Special Fiber Optical Heat Stripper
SH-R401 Special Fiber Optical Heat Stripper
The SH-R401 is a portable heat stripper for specialty and large-diameter optical fibers. It strips longitudinally, fully automatically, using a heated blade driven on a high-precision linear guide, so the fiber is not nicked or scratched during stripping. Heating temperature and heating time are both adjustable, allowing the settings to be matched to different coating types, and the universal holder accepts a wide range of fiber sizes. It is powered by a rechargeable lithium battery, making it suitable for both field and laboratory use.
Key Features
- Easy to use — automatic longitudinal stripping with high quality, stable and efficient results.
- Durable blade, easy to replace.
- High-precision linear guide and motor direct-drive stripping, ensuring no damage to the fiber.
- Strips 60 – 800 µm cladding and 100 – 1000 µm coating fibers, up to 45 mm in one pass.
- Adjustable heating (50 – 150 °C) and heating time (1 – 120 s); rechargeable lithium battery.
Specifications
| Parameter | Specifications |
|---|---|
| Model | SH-R401 |
| Fiber Cladding Diameter | 60 – 800 µm |
| Fiber Coating Diameter | 100 – 1000 µm |
| Stripping Length | ≤ 45 mm |
| Heating Temperature | 50 – 150 °C adjustable |
| Heating Time | 1 – 120 s adjustable |
| Stripping Way | Full-automatic |
| Holder | Universal holder |
| Power Supply | Rechargeable lithium battery |
| Weight | 1.65 kg |
| Environmental Requirement | Temperature < 5 °C, humidity < 85 % |
Data Sheet: SH-R401 Special Fiber Optical Heat Stripper (PDF)
