TEM-F-1053SLD 1053 nm Super Luminescent Diode Laser
$1,000,000.00
Description: Super luminescent diode (SLD) at 1053 nm featuring TEM00 mode, ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: measurement sensor, spectrum analysis, OTC medical imaging, broadband light source, etc.
Model #: TEM-F-1053SLD
| Central Wavelength (nm) | 1053±5 |
| Operating Mode | CW |
| Output Power (mW) | 1-8 |
| Optical Bandwidth (nm) | 55 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1%, <0.5% |
| Transverse Mode | TEM00 |
| Ellipticity | >0.95 |
| M2 | <1.1 |
| Beam Diameter at the Aperture (1/e2, mm) | ~1.0 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Warm-up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 25 |
| Operating Temperature (°C) | 25±3 |

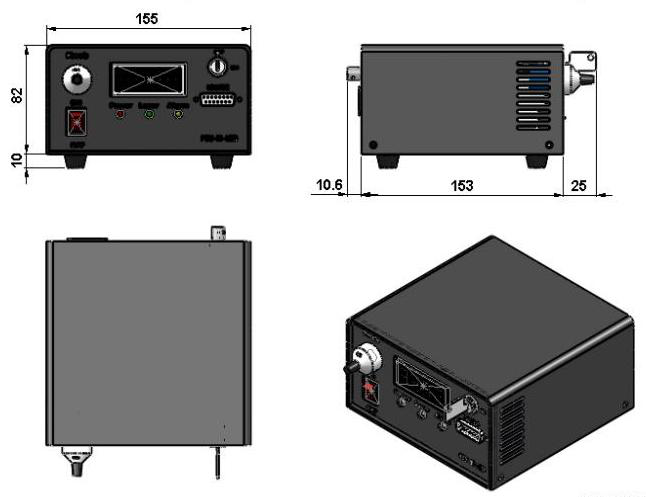

| Power Supply (85-264 VAC) | PSU-III-FDA/PSU-III-LED |
| Modulation Option | DC-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz, 30 kHz-100 kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # TEM-F-1053SLD
Please request a quotation for a real price and lead time.
