TEM-F-460 460 nm TEM00 LD Pumped All-Solid-State CW UV Laser
$1,000,000.00
Description: It features TEM00 mode, ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: measurement, communication, spectrum analysis
Model #: TEM-F-460
| Model | TEM-F-460 |
| Central Wavelength (nm) | 460±10 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-50 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | TEM00 |
| Ellipticity | >0.95 |
| M² | <1.1 |
| Beam Diameter at the Aperture (1/e², mm) | ~1.0 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Warm-Up Time (minutes) | <5 |
| Beam Height from Base Plate (mm) | 25 |
| Operating Temperature (℃) | 25±3 |

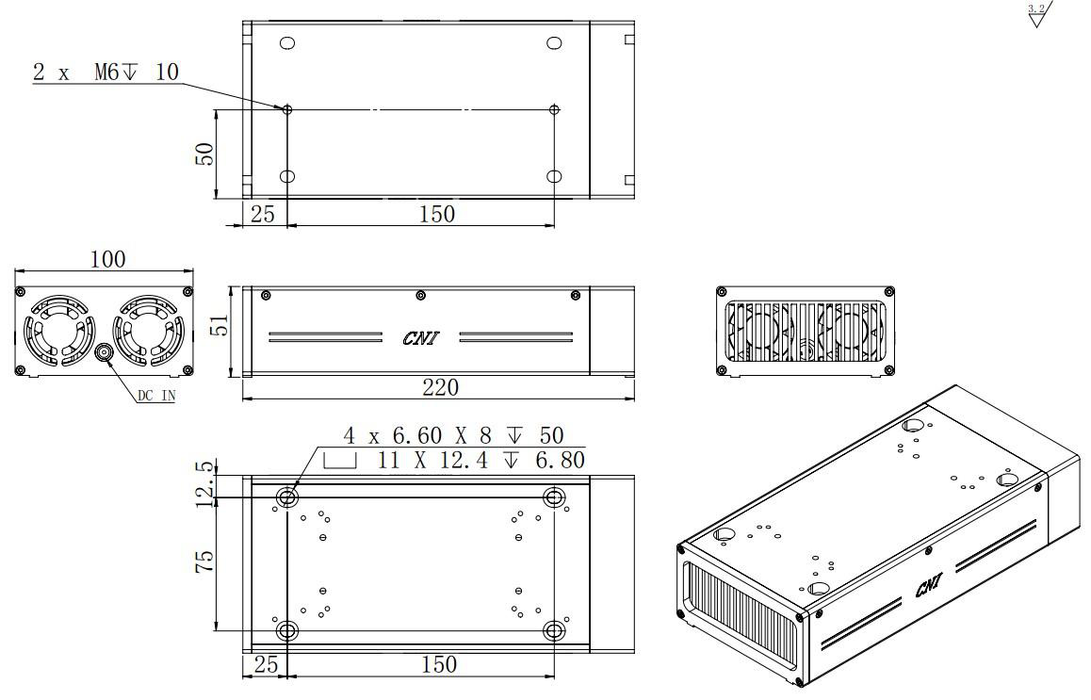

| Power Supply (100-240VAC) | PSU-III-FDA/PSU-III-LED/PSU-A-D |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # TEM-F-460
Please request a quotation for a real price and lead time.
