TEM-LN-780 780 nm Low Noise TEM00 Diode Laser
$1,000,000.00
Description: Low noise TEM00 mode infrared diode laser at 780nm, used in measurement, communication, spectrum analysis.
Applications: measurement, communication, spectrum analysis
Model #: TEM-LN-780
| Model | TEM-LN-780 |
| Central Wavelength (nm) | 780±10 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-50 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | TEM00 |
| Noise of Amplitude (rms, 20Hz-20MHz) | <1%, <0.5% |
| Ellipticity | >0.95 |
| M² | <1.1 |
| Beam Diameter at the Aperture (1/e², mm) | ~1.0 |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Warm-Up Time (minutes) | <5 |
| Cooled Method | Conduction |
| Operating Temperature (℃) | 10-35 |

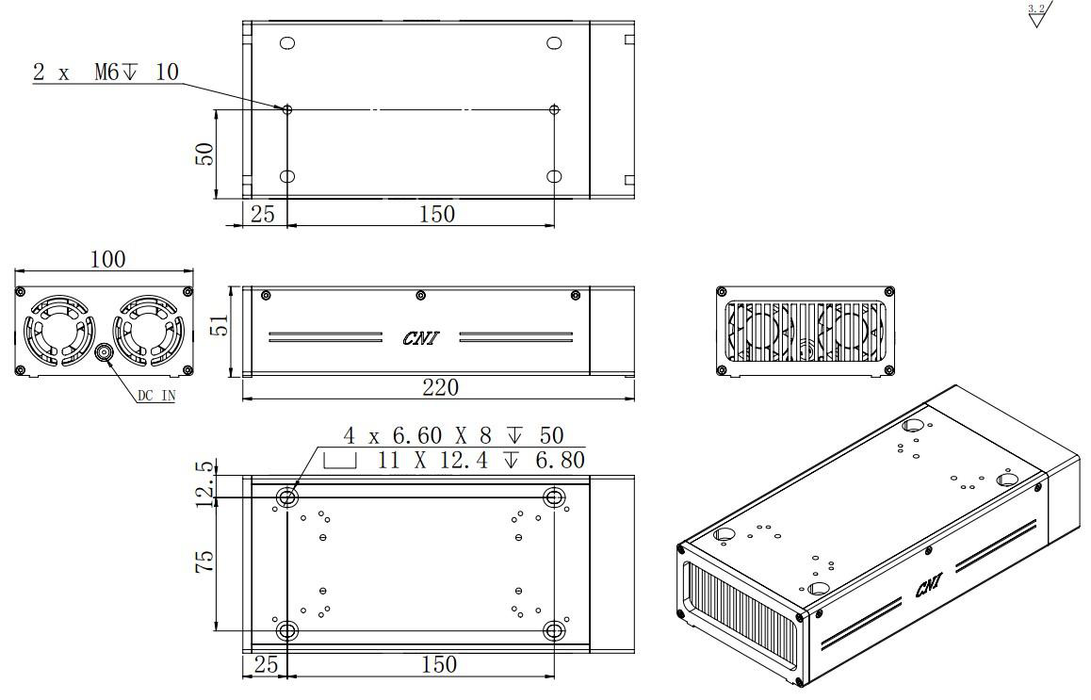

| Power Supply (100-240VAC) | PSU-I-OEM |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # TEM-LN-780
Please request a quotation for a real price and lead time.
