Thermal Expanded Single Core Fiber

Thermal Expanded Single Core Fiber

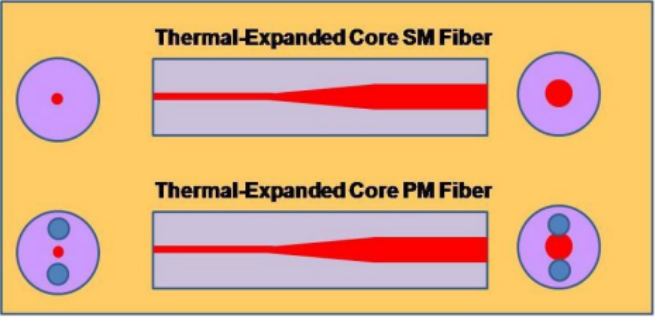

The Thermal Expanded Single Core Fiber enlarges the core thermally at the splice point, creating a large expanded field. That gives low excess loss (0.04 dB typical, 0.1 dB maximum), much more tolerance for alignment, a stable splice and high coupling efficiency to a laser, making it a low loss splicing point between different fibers and for high power connector pigtails. The mode field, glass length, expand length, fiber type, pigtail, fiber length and both connectors are made to order; the datasheet lists the complete specifications and the ordering information.

Key Features

• Low Excess Loss
• Large Expanded Field
• More Tolerance for Alignment

Applications

• Low Loss Splicing Point for Different Fibers
• Stable Fiber Alignment
• High Power Connector Pigtails
• High Coupling Efficiency to Laser

Data Sheet: Thermal Expanded Single Core Fiber (PDF)

Configuration, splitting ratio and packaging are built to order - send us your specification for a quotation.
