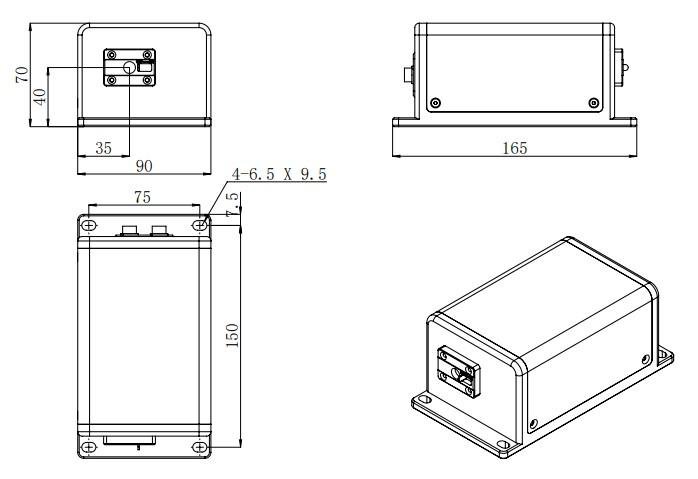

TUN-390.2-392 390.2-392 nm Wavelength Tunable Narrow Linewidth Diode Laser
$1,000,000.00
Description: It is a high-end custom high stability, low noise, narrow linewidth, wavelength tunable product.
Applications: scientific research and teaching, holographic imaging, Raman, atomic clock, coherent detection
Model #: TUN-390.2-392
| Model | TUN-390.2-392 |
| Wavelength Range of Rough Tuning (nm) | 390.2-392 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-15 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Transverse Mode | Near TEM00 |
| Spectral Line Width (nm) | <0.1 |
| Frequency Shift (pm) (over ±2°C and 1hrs) | <10 |
| Coarse Tuning Accuracy (nm) | ~0.03 |
| Fine Tuning Range (GHz)² | >40 (25pm) |
| Fine Tuning Accuracy (nm)² | 0.001 |
| Beam Diameter at the Aperture (1/e², mm) | ~3.0 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Warm-Up Time (minutes) | <5 |
| Cooled Method | Conduction |
| Beam Height from Base Plate (mm) | 24.8 |
| Operating Temperature (℃) | 10-35 |
| Power Supply³ | PSU-TUN |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # TUN-390.2-392
Please request a quotation for a real price and lead time.
