TUN-F-638-644 638-644 nm Tunable TEM00 Red Diode Laser
$1,000,000.00
Description: Red diode laser at 638~644nm is made features of TEM00 mode, tunable wavelength, easy operation, which is used in holography, fluorescence sensors, spectroscopy, Biology, Photochemistry, etc.
Applications: holography, fluorescence sensors, spectroscopy, biology, photochemistry
Model #: TUN-F-638-644
| Wavelength (nm) | 638~644 |
| Operating Mode | CW |
| Output Power (mW) | 1-40 |
| Transverse Mode | TEM00 |
| Power Stability (rms, over 4 hours) | <3%, <2%, <1% |
| Ellipticity | >0.98 |
| Beam Quality (M²) | <1.1 |
| Polarization Ratio | no fixed polarization / >50:1 (>100:1 optional) |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Beam Diameter at Aperture (1/e², mm) | ~1.0 |
| Pointing Stability After Warm-up (mrad) | <0.05 |
| Beam Height from Base Plate (mm) | 45 |
| Warm-up Time (minutes) | <5 |
| Operating Temperature (℃) | 10~30 |

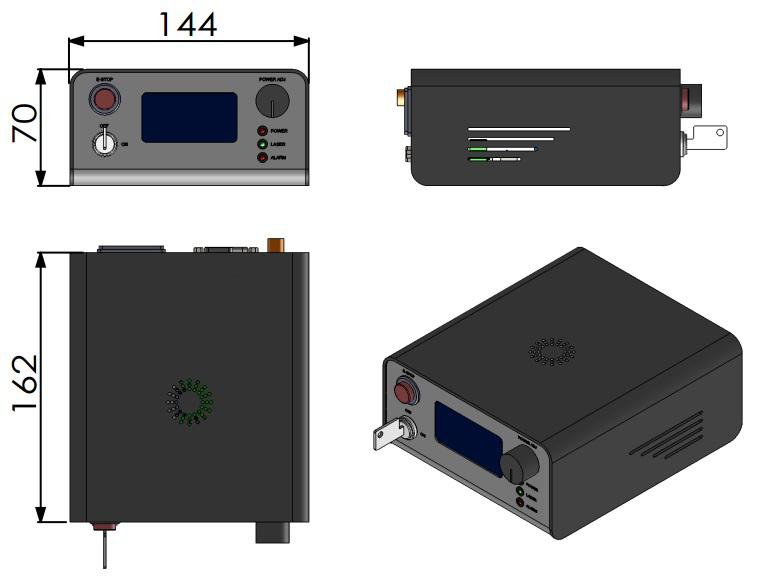

| Power Supply (90-264VAC) | PSU-A-D |
| Modulation Option | TTL/Analog 1Hz-5kHz, 1Hz-10kHz, 1Hz-30kHz, and TTL on/off |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # TUN-F-638-644
Please request a quotation for a real price and lead time.
