TUN-Ti-CW-760-840 760-840 nm CW Ti:Sapphire Tunable Laser
$1,000,000.00
Description: All solid state CW Ti:Sapphire tunable laser at 760-840nm, used in optical instrument, spectral analysis, interferometry, holography, physics experiments.
Applications: optical instrument, spectral analysis, interferometry, holography, physics experiments
Model #: TUN-Ti-CW-760-840
| Model | TUN-Ti-CW-760-840 |
| Wavelength (nm) | 760-840 |
| Operating Mode | CW |
| Output Power (mW)¹ | 1-3000 |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2% |
| Beam Divergence, Full Angle (mrad) | <4 |
| Beam Diameter at the Aperture (1/e², mm) | <3 |
| Beam Height from Base Plate (mm) | 82 |
| Warm-Up Time (minutes) | <10 |
| Cooled Method | Water cooled |
| Operating Temperature (℃) | 15-35 |

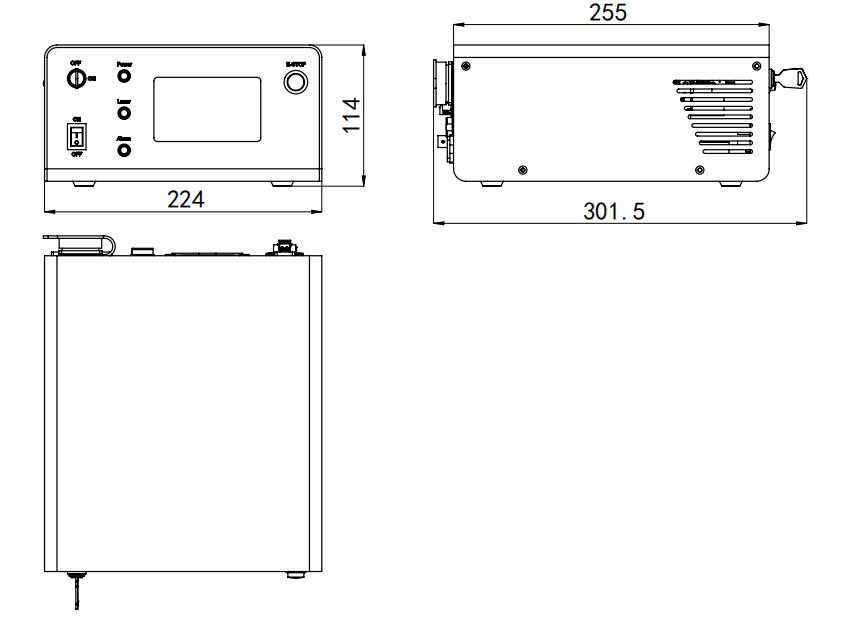

| Power Supply (100-240VAC) | RAD1PS |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # TUN-Ti-CW-760-840
Please request a quotation for a real price and lead time.
