TUN-W-1480-1660 1480-1660 nm Wavelength Tunable All-Solid-State Laser
$1,000,000.00
Description: LD pumped all-solid-state wavelength tunable laser covering 1480-1660 nm with CW output power of up to 2000 mW. Any wavelength range in the list can be ordered.
Applications: remote sensing, communication, spectrum analysis, etc.
Model #: TUN-W-1480-1660
| Wavelength (nm) | 1480-1510 / 1510-1540 / 1550-1600 / 1605-1660 |
| Wavelength Deviation (nm) | ±10 |
| Average Power (mW) | 1-2000 |
| Operating Mode | CW |
| Power Stability (rms, 4 hours ± 3°C) | <5%, <3% |
| Beam Divergence, Full Angle (mrad) | <10 |
| Beam Diameter at the Aperture (1/e2, mm) | <10 |

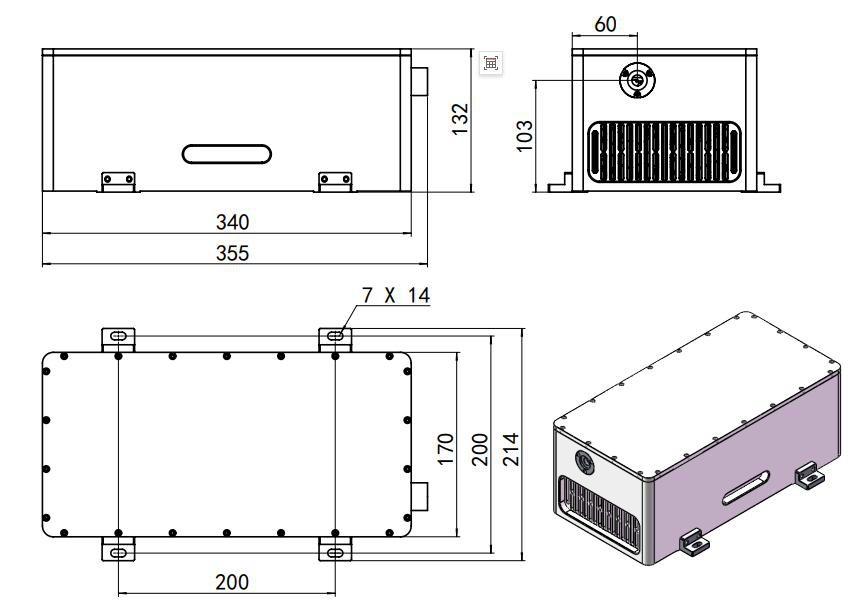

| Beam Height from Base Plate (mm) | 103 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Air cooled |
| Operating Temperature (°C) | 15-35 |
| Power Supply (100-240 VAC) | RAD1PS |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # TUN-W-1480-1660
Please request a quotation for a real price and lead time.
