Ultra-Galvo Scanner
Ultra-Galvo Scanner
The Ultra-Galvo Scanner is a two-axis galvanometer scan set with a photoelectric sensor as its feedback system, giving high repetition accuracy and linearity at a cost-effective price. Each scanner is matched to a mirror of the right inertia through kinematics and dynamics simulation, with an optimised rotor for fast dynamic response. The mirror coatings cover the common laser wavelengths and energy levels, and every mirror is selected for flatness and damage threshold. The units are suitable for flight marking, precision marking, precision cutting and precision welding.
Key Features:
- Photoelectric sensor feedback system — high repetition accuracy, high linearity, high cost performance.
- Mirror matched to each galvo meter through kinematics and dynamics simulation, with an optimised rotor for excellent dynamic properties and response.
- High-precision miniature bearings with axial preload for high rigidity and low-friction operation, with attention to bearing life.
- Scanning mirrors available for common laser wavelengths and energy levels, optimised for inertial load, rigidity and flatness.
- Widely used in flight marking, precision marking, precision cutting and precision welding.
Specifications of Ultra-Galvo Scanner
| Photoelectric Galvanometer | S | M | L |
|---|---|---|---|
| Input Beam Aperture (mm) | 10 | 14 | 20 – 30 |
| Moment of Inertia (g·cm²) | 0.34 | 1.2 | 5.1 |
| Torque Constant (N·mm/A) | 7.5 | 15 | 24 |
| Coil Resistance (Ω) | 2.7 | 2.6 | 1.58 |
| Coil Inductance (µH) | 165 | 275 | 420 |
| Max. Continuous Current (A) | 2.5 | 3.5 | 5 |
| Peak Current (A) | 10 | 10 | 10 |
| 1 % Angle Response Time (ms) | 0.18 | 0.3 | 0.7 |
| Weight (g) | 220 | 300 | 400 |
| Sensor Parameters | |
|---|---|
| Max. Scanning Angle (°) ① | ±12.5 |
| Nonlinearity (%) | < 0.4 |
| Repeatability (µrad) | < 2 |
| Offset Drift (µrad/K) | < 10 |
| Gain Drift (ppm/K) | < 25 |
| Position Resolution | 18 Bit ② |
| Output Signal, Common Mode | Typical 170 µA with AGC current of 30 – 40 mA |
| Output Signal, Differential Mode | 9 – 10 µA/° with AGC current of 30 – 40 mA |

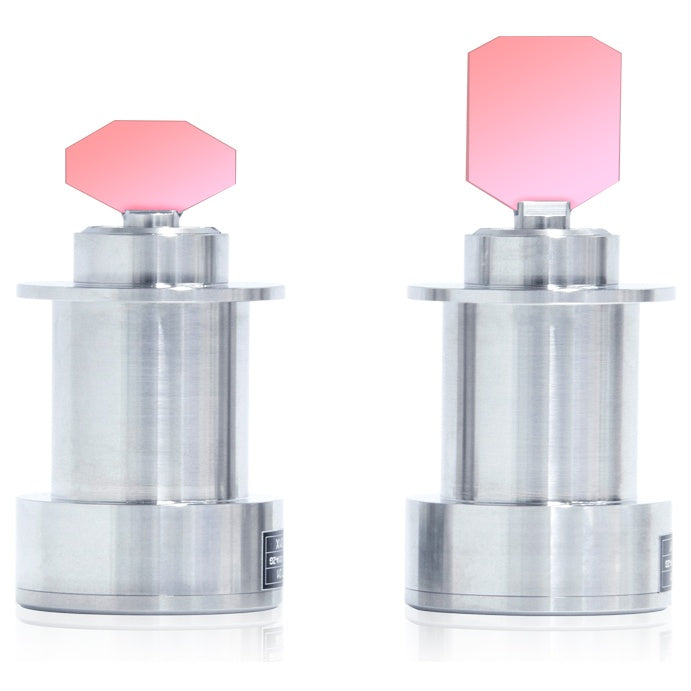

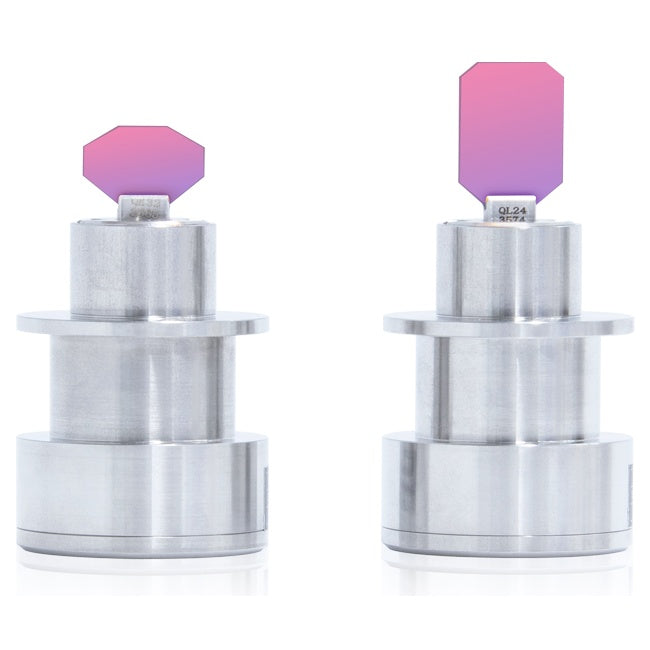

S: 10 mm · M: 14 mm · L: 20 – 30 mm aperture.
Notes: ① All angles above are mechanical angles. ② After calculation, 18 bit at 25 °C corresponds to 1.7 µrad, and 23 bit at 360° corresponds to 0.75 µrad.
Data Sheet: Ultra-Galvo Scanner (PDF)

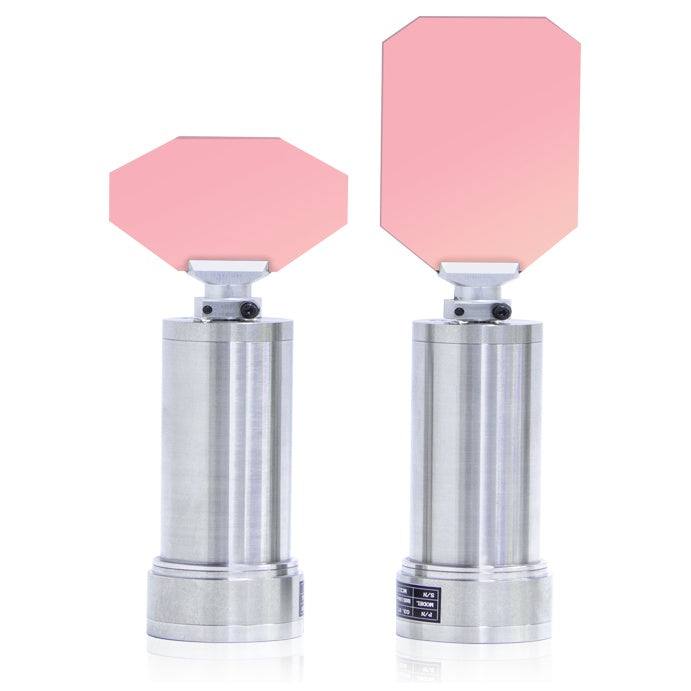

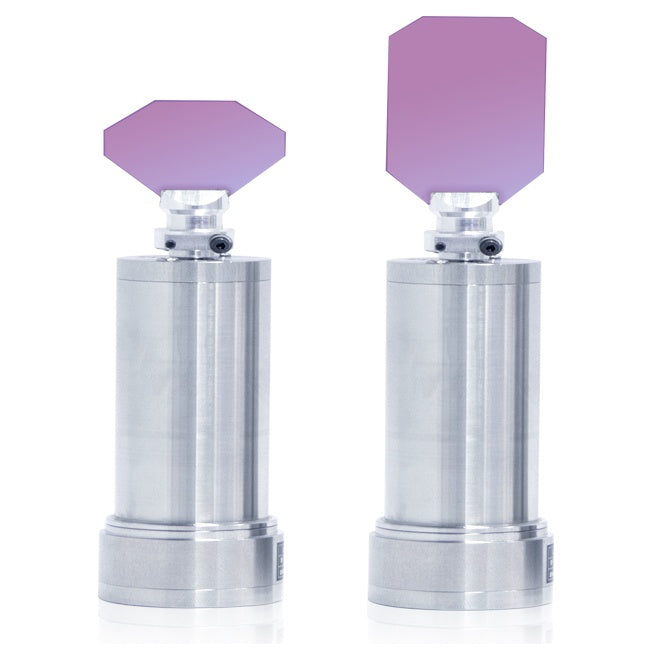

Available in 10 mm, 14 mm, 20 mm and 30 mm apertures. Tell us your laser type and application and we will quote the right set.
