360 nm LD Pumped All-Solid-State CW UV Laser UV-DP-360-A
$1,000,000.00
Description: CNI’s all solid-state CW mode UV laser features ultra compact, easy operating, high power and stability.
Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment
Model #: UV-DP-360-A
| Model | UV-DP-360-A |
| Wavelength | 360 nm |
| Operation Mode | CW |
| Average Power | 150-400 mW |
| Power Stability | <3%, <2%, <1% |
| Transverse Mode | Near TEM00 |
| Beam Diameter at the Aperture | <3.0 mm |
| Beam Divergence, Full Angle | <3.0 mrad |
| Warm-Up Time | < 10 min. |
| Polarization Ratio | >100:1, Vertical (Horizontal optional) |

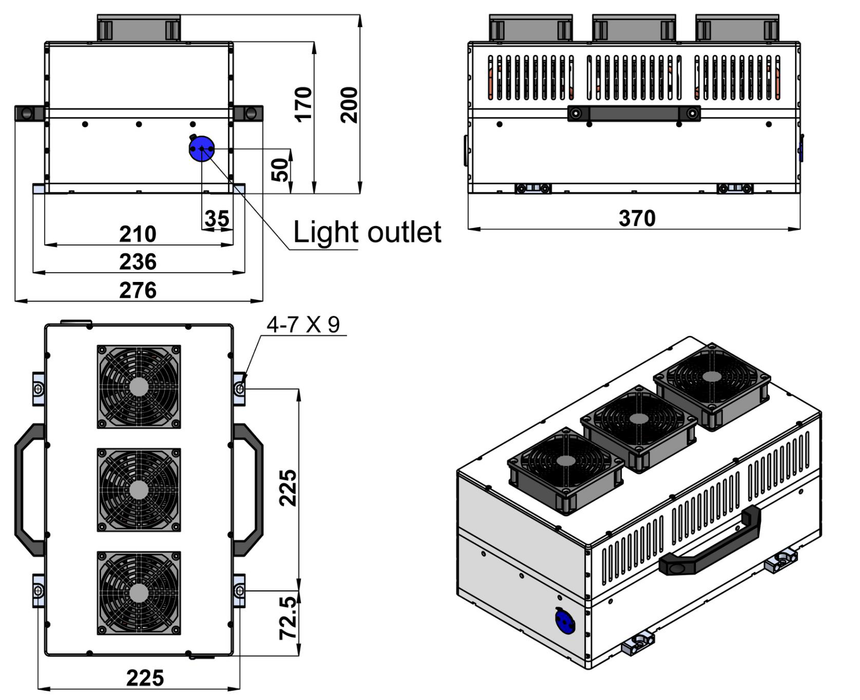

| Beam Height from Base Plate | 50 mm |
| Cooling Method | Air Cooled |
| Operating Temperature | 10 ~ 35 ℃ |
| Power Supply (90 - 264 VAC) | PSU-DP-A |
| Expected Lifetime | >10000 (hours) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # UV-DP-360-A
Please request a quotation for a real price and lead time.
