261 nm LD Pumped All-Solid-State CW UV Laser UV-FN-261
$1,000,000.00
Description: CNI’s all solid state UV laser features high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: UV-FN-261
| Model | UV-FN-261 |
| Wavelength | 261 nm |
| Operation Mode | CW |
| Average Power | 1-10 mW |
| Power Stability | <3%, (<2% optional) |
| M2 | <3.0 |
| Polarization Ratio | >100:1, Vertical (Horizontal optional) |
| Power Supply (90 - 264 VAC) | PSU-H-FDA |
| Transverse Mode | TEM00 |
| Beam Diameter at the Aperture | <1.0 mm |
| Beam Divergence, Full Angle | <1.2 mrad |
| Warm-Up Time | < 10 min. |
| Pointing Stability | <50 µrad (over 2 hours after warm-up and ±3°C) |
| Pointing Stability Over Temperature | <8 µrad/°C |

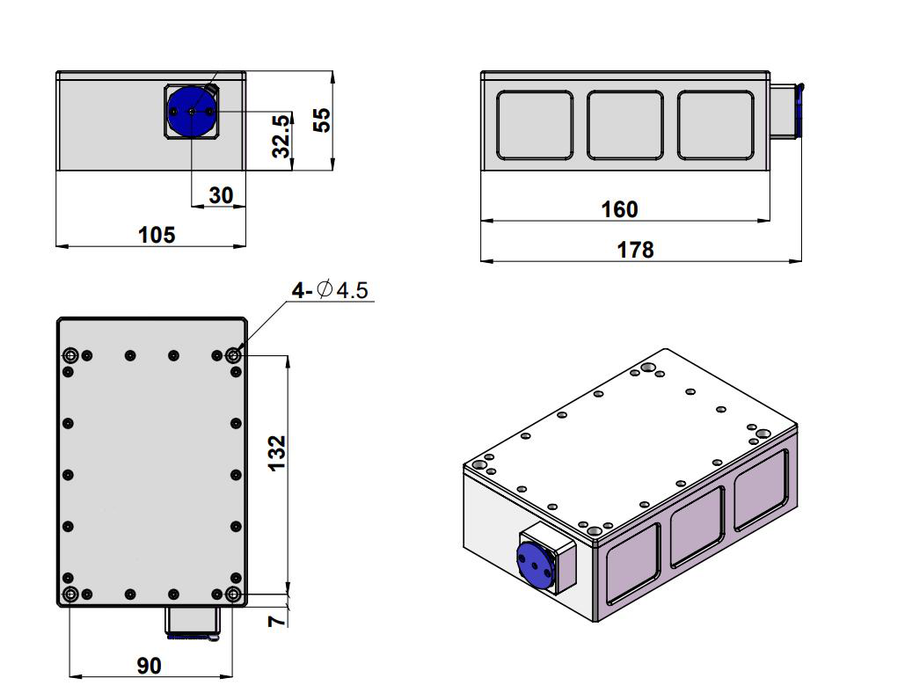

| Beam Height from Base Plate | 32.5 / 27.4 mm |
| Operating Temperature | 10 ~ 35 ℃ |
| Modulation Option | DC-1kHz; TTL and Analog optional |
| Expected Lifetime | >10000 (hours) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # UV-FN-261
Please request a quotation for a real price and lead time.
