193 nm LD Pumped All-Solid-Sate Electric-optic Q-switched Pulsed Laser VUV-193
$1,000,000.00
Description: All-solid-state Q-switched UV laser at 193nm has the features of ultra-compact and easy operation.
Applications: UV lithography testing, micro-electronics, metrology and material processing, semiconductor material testing, scientific experiment
Model #: VUV-193-XX-YY
| Model | VUV-193 |
| Wavelength | 193 nm |
| Average Power | 1-3 mW |
| Repetition Rate | 5 kHz |
| Power Stability | <5%, <3% |
| Warm-Up Time | < 10 min. |
| Operation Mode | Pulsed |
| Pulse Width | ~10 ns |
| Single Pulse Energy | 0.1-0.6 µJ |
| Peak Power | 0.001-0.06 kW |
| Beam Diameter at the Aperture | ~2×3 mm |
| Polarization Ratio | >50:1 Horizontal |
| Beam Height from Base Plate | 134 mm |

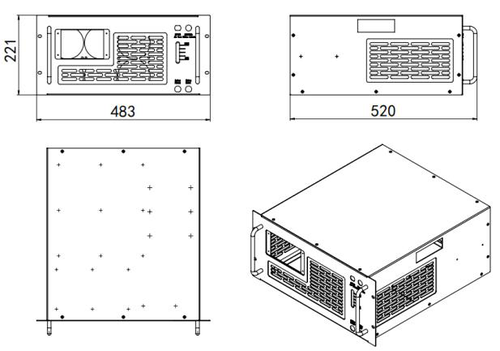

| Cooling Method | Water cooled |
| Operating Temperature | 10-35 ℃ |

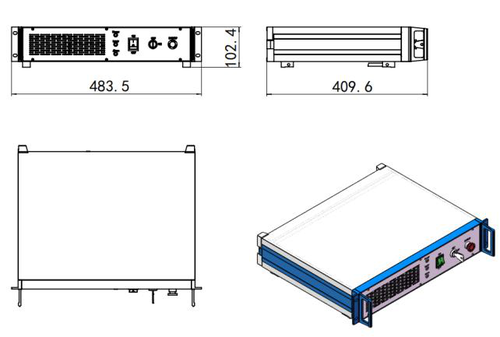

| Power Supply (90 - 264 VAC) | RAD1PS |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # VUV-193
Please request a quotation for a real price and lead time.
