Wedge Lensed Optical Fibers
Wedge Lensed Optical Fibers

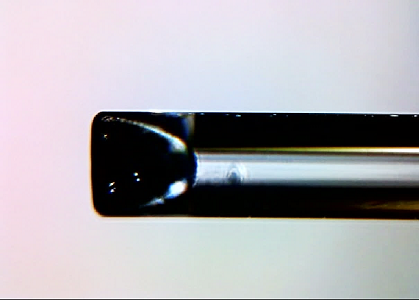

The Wedge Lensed Optical Fiber is ground to a wedge (cylindrical lens) end face on conventional single-mode, multimode or polarization maintaining fiber. Coupling an LD chip with an elongated light spot through the cylinder lens gives a good mode field match with the chip and therefore excellent coupling efficiency, with low loss and high precision. Wedge angle, radius of curvature, strip length, pigtail and connector are made to order.
Key Features
- Low loss
- Excellent coupling efficiency
- High precision
Applications
- Fiber optic coupling of LD chips with an elongated light spot and cylinder lens
Specifications
| Parameter | Unit | Values |
|---|---|---|
| Fiber Type | / | Conventional single-mode / multimode / polarization maintaining fiber; special optical fibers provided by customers |
| Angle | ° | 50° ~ 120° |
| Radius of Curvature | µm | 5 ~ 15 ± 1 µm, or the radius specified by the customer |
| Strip Length | mm | >5 ± 1 mm |
| Axis Deviation | ° | ≤ 1.5° |
Ordering Information
| Field | Options |
|---|---|
| Code | WLOF – wedge lensed optical fiber |
| Fiber Type | 1 = G652 or equivalent, 4 = 105/125 MMF, 5 = 980-20 or equivalent, 6 = HI060 or equivalent, S = Specify |
| Angle | 050 = 50° … 120 = 120° (1° steps), S00 = Specify |
| Radius | 5 = 5 µm … 9 = 9 µm, S = Specify |
| Strip Length | 1 = 5 mm, 2 = 10 mm, 3 = 15 mm, 4 = 20 mm, S = Specify |
| Pigtail Type | 1 = 250 µm bare fiber, 2 = 900 µm loose tube |
| Pigtail Length | 0 = 0.5 m, 1 = 0.75 m, 2 = 1.0 m, 3 = 1.5 m, 4 = 2.0 m, S = Specify |
| Connector | 0 = None, 1 = FC/PC, 2 = FC/SPC, 3 = FC/APC, 7 = FC/UPC |
Data Sheet: Wedge Lensed Optical Fibers (PDF)
Configuration, wedge angle, radius and packaging are built to order — send us your specification for a quotation.
