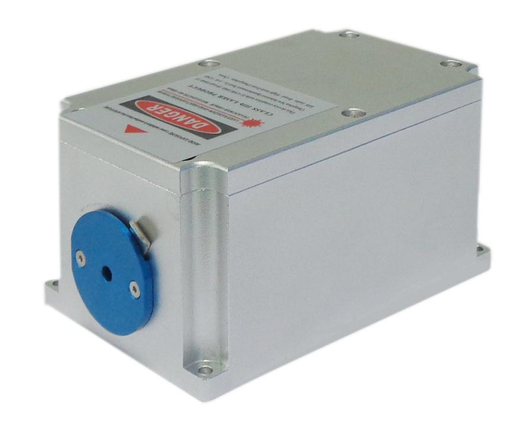

MDL-NS-1310 1310 nm Nanosecond Pulsed Infrared Diode Laser

$1,000,000.00

Output power

Quantity

Description: This series laser products with excellent material removal rate, are widely used in microelectronics, material processing, solar energy and medical equipment manufacturing, etc.

Applications: microelectronics, material processing, solar energy and medical equipment manufacturing

Model #: MDL-NS-1310

Model	MDL-NS-1310
Central wavelength (nm)	1310±20
Operating mode	Pulsed
Peak power (mW)	1-10
Power stability (rms, 4 hours ±3°C)	<2%, <1%, <0.5%
Pulse width (FWHM)	10ns-10ms
Transverse mode	Near TEM00
M2	<1.5
Beam diameter at the aperture (1/e², mm)	~1.5
Beam divergence, full angle (mrad)	<2.0
Rep. rate	DC-30MHz
Rise Time (ns)	<5
Fall Time (ns)	<3
Modulation Depth (extinction ratio)	>1000000:1
Warm-up time (minutes)	<5
Cooled method	Conduction
Beam height from base plate (mm)	19
Operating temperature	10-35
Operating voltage (VDC)	12V/3.34A
Expected lifetime (hours)	>10000

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Long lifetime
FDA registered
ISO and CE qualified
ROHS complied
Model # MDL-NS-1310

Please request a quotation for a real price and lead time.

1310 nm

MDL-NS-1310 1310 nm Nanosecond Pulsed Infrared Diode Laser
