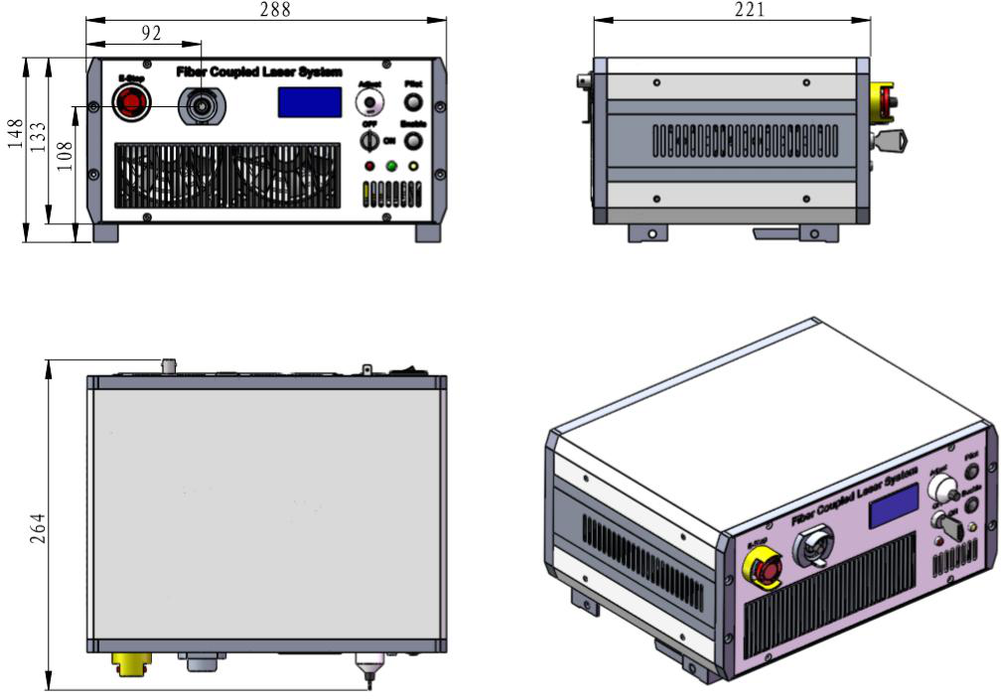

878.6 nm Fiber-Coupled Diode Laser System FC-W-878.6
$1,000,000.00
Description: The FC-W-878.6 series (Fiber Coupling Laser System) integrates laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions make it very suitable for pumping, scientific research, industrial and medical applications.
Applications: pumping, scientific research, industrial and medical applications
Model #: FC-W-878.6
| Wavelength | 878.6 |
| Operation Mode | CW |
| After Fiber Output Power | 20-50 (FC-W-878.6) / 50-150 (FC-W-878.6H) / 200 (FC-W-878.6H-Water) |
| Power Stability | <2%, <1%, (<0.5% optional) |
| Red Pilot Light | Available on request |
| Fiber Core Diameter | 400um, 0.22 NA |
| Fiber Connector | SMA905, FC/PC optional |
| Fiber Length | 2 m |
| Fiber Jacket | Metal, PVC optional |
| LED Display | Diode current |
| Operating Temperature | 10-40 |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional; TTL and Analog optional |
| Operating Voltage | 100-240 |
| Cooling Method | Air cooled / Water Cooled |
| Expected Lifetime | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-878.6
Please request a quotation for a real price and lead time.
