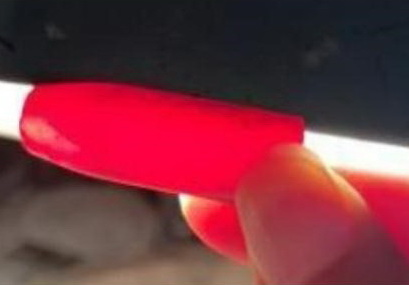

BGGSe (BaGa2GeSe6) Nonlinear Crystal
BGGSe (BaGa2GeSe6) Nonlinear Crystal
Selenium Germanium Gallium Barium (BGGSe) BaGa2GeSe6 (BGGSe crystal for short) belongs to R3 space group of tripartite system, which has high laser damage threshold, wide transmission range (0.5~18μm), moderate birefringence, large nonlinear coefficient, stable chemical properties, high crystal symmetry and easy processing. Nd:YAG laser can be used for pumping, and it has important application potential in frequency conversion of infrared lasers such as frequency doubling of CO and CO2 lasers and generation of mid-far infrared lasers by optical parametric oscillation. Because of its low dispersion and high damage threshold, BGGSe crystal has advantages in ultra-wide mixing and ultra-short pulse output.
Specifications
| Parameter | Specifications |
|---|---|
| Transmission Range | 0.54 - 18 μm |
| Lattice Constant | a=9.5967(5)Å，b=9.5967(5)Å，c=8.6712(7)Å，α=β=90°，γ=120°，Z=1 |
| Density | 5.16 g/cm³ |
| Nonlinear Coefficient | 66 pm/V |
| Melting Point | 887℃ |
| Absorptivity | <0.05 cm⁻¹ @ 2.09 µm |
| Thermal Conductivity | <1.0 W/M/°C |
| Damage Threshold | 201 MW/cm² @8.6ns, 1.053μm |
Data Sheet: BGGSe (BaGa2GeSe6) Nonlinear Crystal (PDF)
Dimensions, orientation and coatings are made to order - send us your specification for a quotation.
