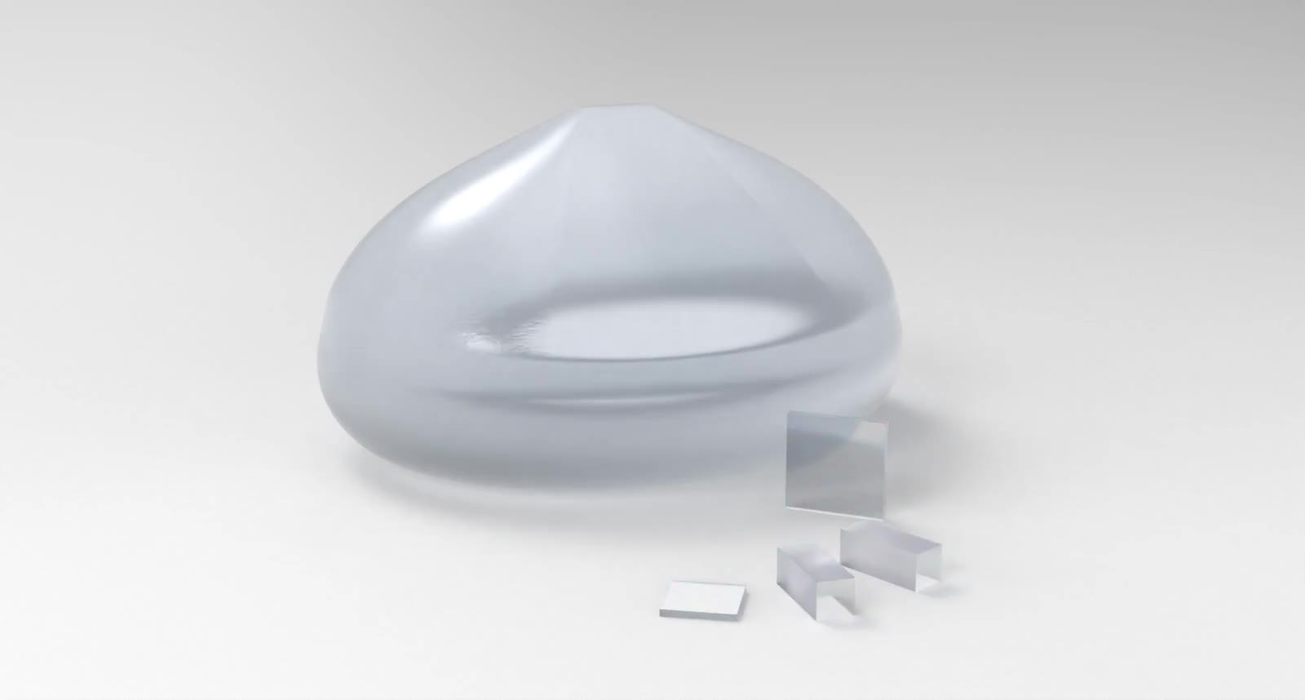

BBO Nonlinear Crystal
BBO Nonlinear Crystal
In the nonlinear optical crystal, BBO crystal is a kind of crystal with obvious comprehensive advantages and good performance. It has a very wide light transmission range, a large matching angle, a high resistance to light damage threshold, and a broadband temperature matching. Excellent optical uniformity, especially for the triple frequency of Nd:YAG lasers.
Key Features and Applications
- Wide transparency
- Broad phase-matching range
- Small walk-off angle
- High damage threshold
- Wide acceptance angle
- High optical homogeneity 473nm
Specifications
| Parameter | Specifications |
|---|---|
| Flatness | λ/8 at 633nm |
| Parallelism | ≤20 arcsec |
| Wavefront Distortion | λ/8 at 633nm |
| Surface Quality | 10-5 |
| Perpendicularity | ≤5 arcmin |
| Angle tolerance | Δθ,Δφ≤±0.25° |
| Dimension tolerance | ±0.1mm |
| Clear Aperture | 90% of central area |
| Chamfer | ≤ 0.2mmx45° |
| Chip | ≤0.1mm |
| Damage Threshold | 0.3GW/cm2 532nm TEM00 10ns 10HzAR-coated |
Product Video
Data Sheet: BBO Nonlinear Crystal (PDF)
Dimensions, orientation and coatings are made to order - send us your specification for a quotation.
